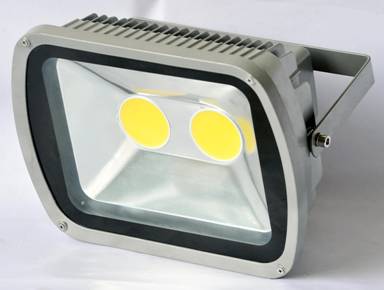

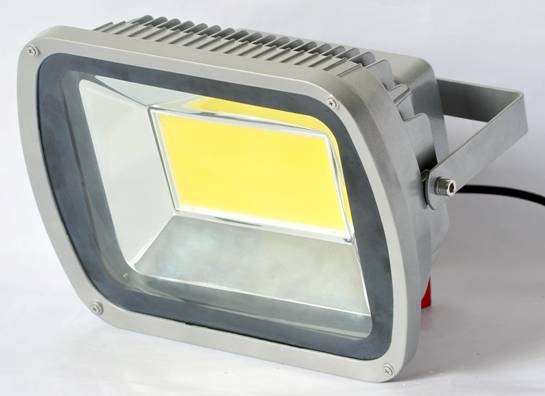

LED FLOOD LIGHT-60W

Type：FH60

                                                      （此图片仅供参考）

LED plane light source lamp is a lamp assembly of the company to develop a high brightness LED plane light source, the product has the appearance of fashion, sturdy and reliable,waterproof and dustproof, soft light,energy saving and environmental protection features, and a variety of color temperature options, widely used in square, landscape,advertising, factory buildings, tunnels and roads lighting.

The lamp uses a die cast aluminum alloy shell, durable, surface oxidation treatment, with black, white, silver gray surface coating treatment, can also be sprayed into the specified coloraccording to the needs of users,white steel vacuum coatingreflector cup, the lamp has the advantages of compact structure, reliable and durable, beautiful appearance, verymodern. Optical design of precision, ensure the luminousuniformity, high transparent toughened glass, high brightness,high power LED light source, waterproof and moistureproofprocessing, suitable for outdoor harsh environment, installation is simple, quick, strong versatility, wide range of application.

Source characteristics Power characteristics

Surface light source advanced packaging technology; Input voltage 90~264V, 50Hz;

Design of thermal channel is good; output power:60W;

High efficiency, high luminous flux; Power Factor(PF):>0.95;

Good color rendering properties;

Low glare;

Lamp characteristics;

Light and soft, good color;

Cold light source, no heat radiation, no harmful metal mercury,green environmental protection;

Low power, small power consumption, no heating, long service life, good stability, high reliability;

The lamp body is made of metal, good impact resistance,surface oxidation treatment;

The mask is made of toughened glass, high transmittance, even and soft light and durable;

Specifications：

Light source life:

Lighting products the company adopted the LED plane light source as the lighting source, the radiation mechanismcompletely change the original single particle chip, single particle radiation of the chip area and the same powercompared to the extension of hundreds of times or even thousands of times. LED plane light source module with aluminum plate, can quickly for the two heat and heat from other material, so that the light junction temperature rapid conduction.Greatly improve the reliability and service life of the light source.LED light source life up to 50000 hours of MTBF (mean time to failure).

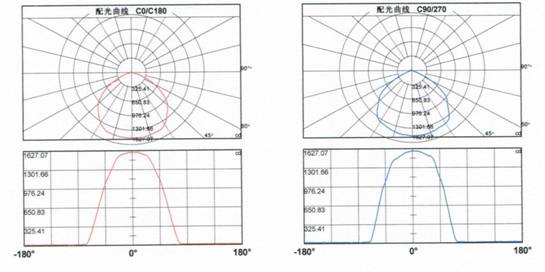

       light distribution curve

图4  The plane light source light FH60 light distribution curve

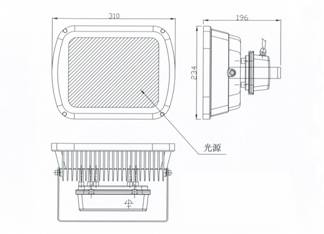

Cast light size chart
